SURETHERM PRO 3X
Log in or register to see pricing

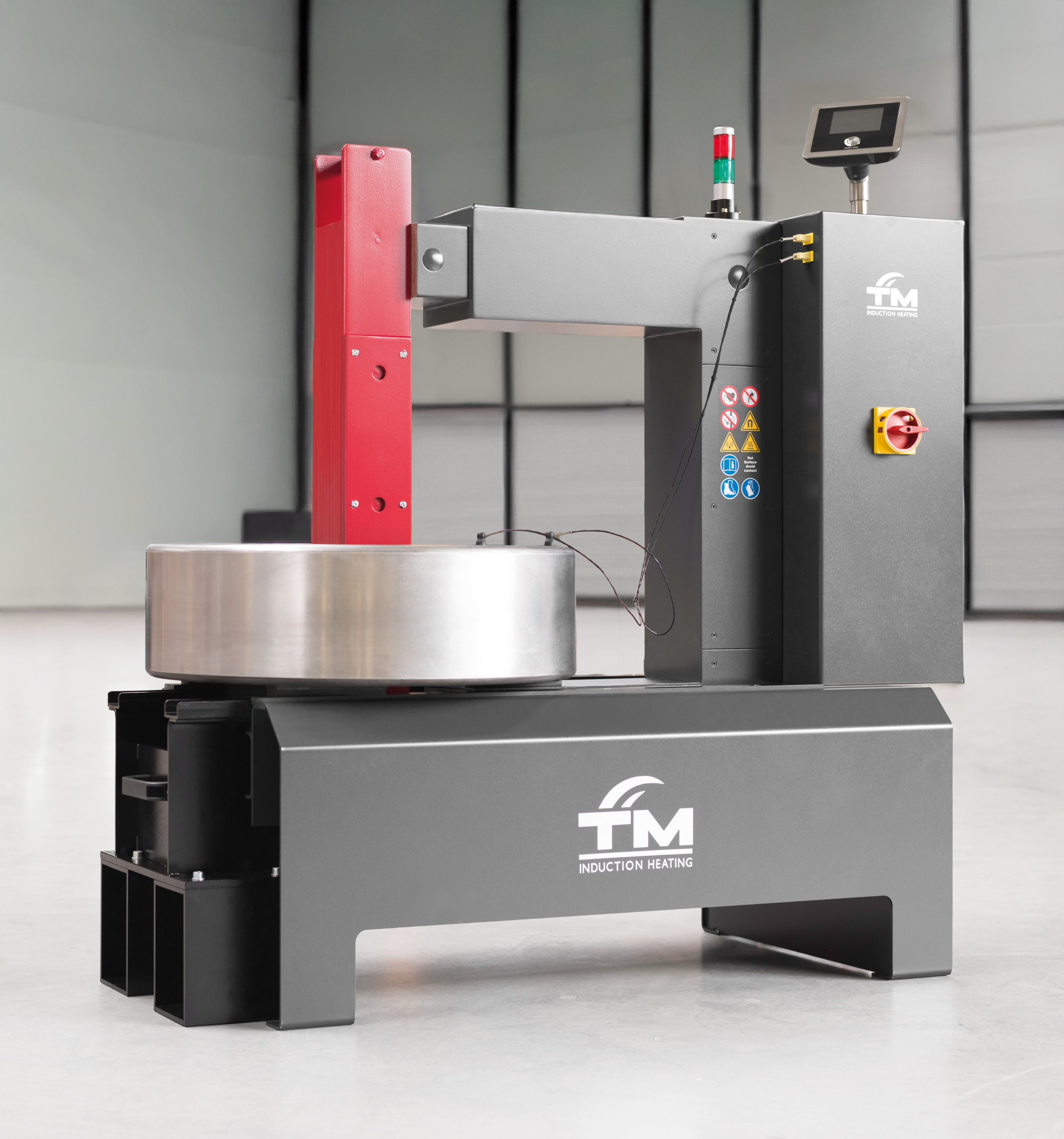

The SURETHERM PRO 3X is the large-scale industrial model in TM Induction Heating’s SURETHERM range, built for controlled heating of very large bearings, gears, and other parts. It is designed for heavy-duty applications, delivering reliable, tension-free heating for parts up to 800 kg and larger diameters in demanding environments.
Key functions include dual-sensor operation and ramp mode for controlled, repeatable heating cycles. The unit features an industrial touchscreen for fast setup, real-time monitoring, and heating graph display. Heating cycle data can be exported via USB for traceability, and firmware updates are supported throughout the product’s life cycle.

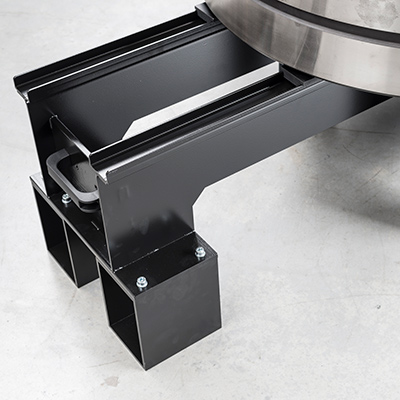

Designed for heavy industry, the SURETHERM PRO 3X combines capacity with improved handling for large workpieces. A robust work area and heavy-duty yoke concept support safer positioning and repeatable results, making it a solid choice where high power, process control, and operator efficiency are required.

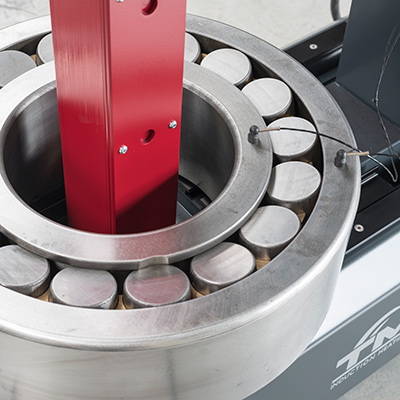

The following yokes are included with SURETHERM PRO 3X: 100 x 100. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.
Specifications
| Weight | 539 kg |
|---|---|
| Dimensions | 122 × 82 × 153 cm |
| Input (Supplied Power) | 380V-63A-50Hz, 380V-63A-60Hz, 400V-63A-50Hz, 440V-55A-50Hz, 440V-55A-60Hz, 460V-55A-50Hz, 460V-55A-60Hz, 480V-55A-50Hz, 480V-55A-60Hz, 500V-50A-50Hz, 500V-50A-60Hz, 575V-45A-60Hz |
DATASHEET SURETHERM PRO 3X
ELECTRICITY
Power rating
25.2 kVA
Voltage
400 – 575 V
Current max.
63.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
800.0 kg
WORKPIECE
Min. bore Vertical
ø300.0 mm
Min. bore Horizontal
45.0 mm
Max. outer diameter Vertical
1140.0 mm
Max. outer diameter Horizontal
1500.0 mm
Max. workpiece width
425.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
280 kg
DIMENSIONS
L × W × H
1080 × 500 × 1350 mm
CONTROLS
Temperature (1 sensor)
0-240°C (custom: 0-400°C)
Time
0-99 min
Temperature (2 sensor)
0-240°C ΔT 20-50°C
Time / Temperature Ramp
0-99 min / 5-240°C
Set power
5-100%
TOUCHSCREEN
Heating Temperature (1 sensor)
Actual Temperature and Power, Set Temperature and Power, Timer
Heating time
Actual Temperature and Power, Set Temperature, Timer
Heating Temperature (2 sensor)
Set- and actual temperature, time and power. Actual temperature difference between inside and outside diameter
Heating Time / temp ramp
Set- and actual temperature, time and power
Languages
English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish
Error report
Shown in display
OTHERS
Heating graph
Shown in display
External interface
USB 2.0 Port for download graph and heating cycles and up load new software
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm
Magnetic probe
2 Sensors (standard)
Thermal safety guard coil
Yes
WARRANTY
Warranty period
Max. 36 Months (24+12)
